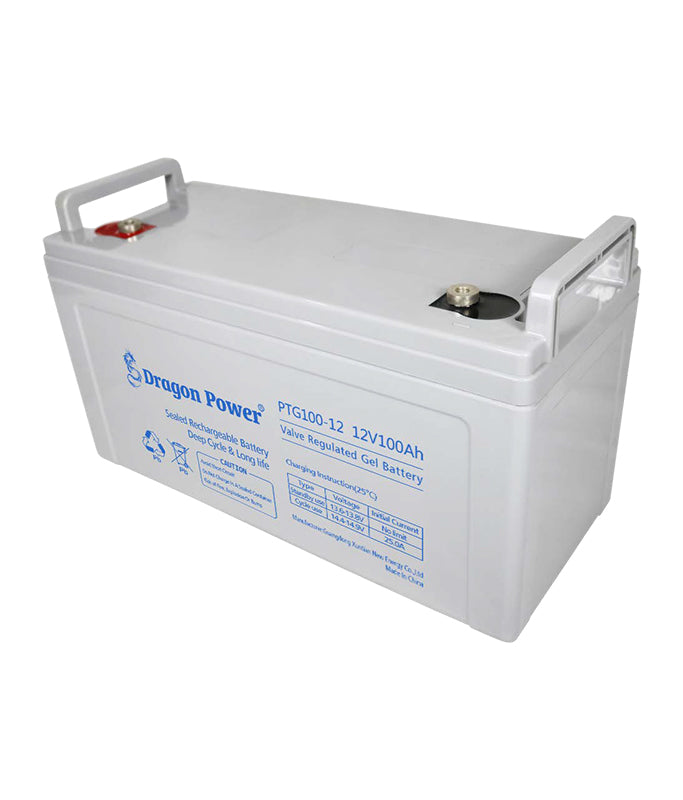

PTG100-12 12V100AH Gel Battery
PTG100-12 12V100AH Gel Battery
Regular price
R 2,070.00
Regular price
Sale price
R 2,070.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
PTG100-12 12V100AH
Gel Battery
General Feature
- Micromillimeter SiO2 and H2SO4 technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
- Not restricted to air transport-complies with IATA/ICAO Special Provision A67.
- Can be mounted in any orientation.
- Computer-designed lead, calcium tin alloy grid for high power density.
- Long service life, float or cyclic applications.
- Maintenance-free operation.
- Low self-discharge.
Specification
- Nominal voltage •••••••••••••••• 12V
- Number of cell ••••••••••••••••••• 6
- Length(mm/inch) ••••••••••••••• 407/16.02
- Width(mm/inch) •••••••••••••••• 174/6.85
- Height(mm/inch) ••••••••••••••• 209/8.23
- Total Height(mm/inch) •••••••••••••••• 233/9.17
- Approx.Weight(kg/lbs) •••••••••••••••• 29/63.93
Material
| Component | Positive plate | Negative plate | Container | Cover | Safety valve | Terminal | Separator | Electrolyte |
| Raw material | Lead dioxide | Lead | ABS | ABS | Rubber | Copper | Fiberglass | Colloidal Silicon |
CONFIGURATION
| Capacity 77˚F(25˚C) | 20 hours rate (5.2A 10.8V) | 104Ah |
| 10 hours rate (10A 10.8V) | 100Ah | |
| 5 hours rate (17.4A 10.5V) | 87Ah | |
| 1 hour rate (63.5A 9.6V) | 63.5Ah | |
| Internal Resistance | Full charged battery 77° F(25℃):6mΩΩ | |
| Capacity affected by Temperature (10 hour rate) | 104° F(40℃) | 102% |
| 77° F(25℃) | 100% | |
| 32° F(10℃) | 85% | |
| 5° F(-15℃) | 65% | |
| Self-Discharge 68° F(20℃) | Capacity after 3 month storage | 90% |
| Capacity after 6 month storage | 80% | |
| Capacity after 12 month storage | 60% | |
| Max discharge current 77° F(25℃):800A(5S) | ||
| Charge (Constant Voltage) | Float:13.6 to 13.8V/77° F(25℃) | |
| Cycle:14.4 to 14.7V/77° F(25℃) Max Current:25A |
||
