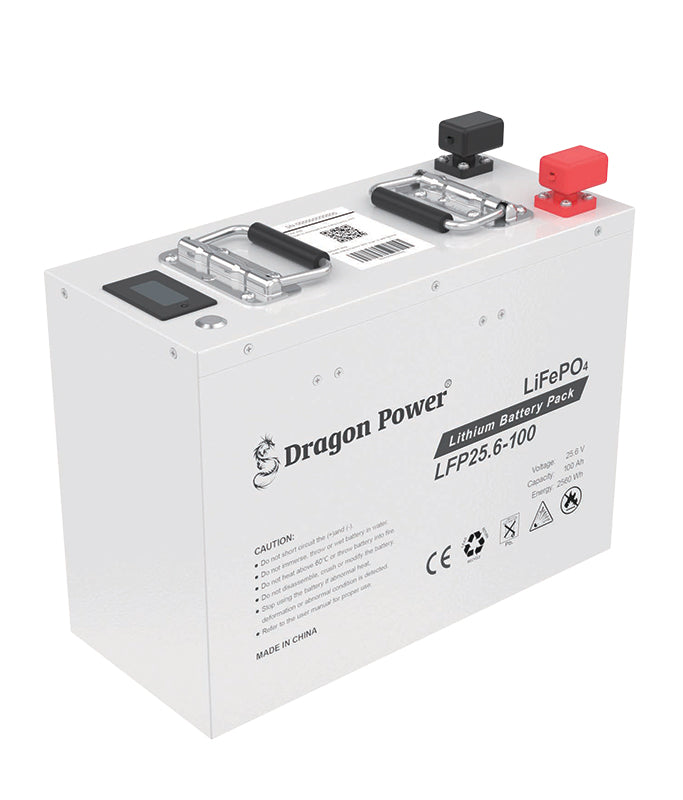

LFP25.6-100 25.6V100AH

Lithium Replaced Series

General Feature

  • Longer cycle life: ≥6000 cycles.
  • High energy density, good safety performance.
  • Stable discharge voltage, low self-discharge rate.
  • BMS Intelligent protection.
  • LCD power display, Bluetooth monitoring data.
  • Wider temperature range: -20℃~60℃.

Application

  • Solar/Wind Energy Storage System
  • Communication Equipment
  • Emergency Power System
  • Medical Equipment
  • UPS Backup Power
  • Electric Vehicles/Electric mobility
  • Fire And Security System
  • Lighting

Product Parameter

Available electricity 2.56kWh
Rated capacity 100Ah
Combination mode 8S1P
BMS configuration 8S100A
Rated voltage 25.6V
Operating voltage range 20V~29.2V
Rated charge and discharge current 50A
Peak current 100A Continue @105A 10s
Rated charging and discharging power 1.28kW
Peak power 2.56kW Continue @2.688kW 10s
Short-circuit current 0.45Ka@100us
Cycle life ≥6000 Cycle， 80%DOD, 25℃
Communication mode No
Parallel number Support 2 string 2 parallel
Remote data Bluetooth
Battery Displays LCD
Weight 21±3%Kg
Dimensions (L*W*H) mm 350*155*255mm
Operating temperature Charging：0℃~+50℃ / Discharge：-20℃~+60℃
Relative humidity 0~95%
Storage temperature ＜3 Months -10℃~25℃ / ＜1 Year 0℃~25℃
Maximum working altitude 2000m
Class of protection IP20
Installation mode Wall hanging/Floor mounting
Power cable outlet mode Upper Cover
Standards and certification MSDS, UN38.3



*1：Test conditions, cell voltage 2.5V~3.65V, the new battery at +25±2℃ 0.5C charging and discharging, available power may vary depending on the inverter.

*2：Rated charge and discharge current and power will change due to temperature and SOC.
