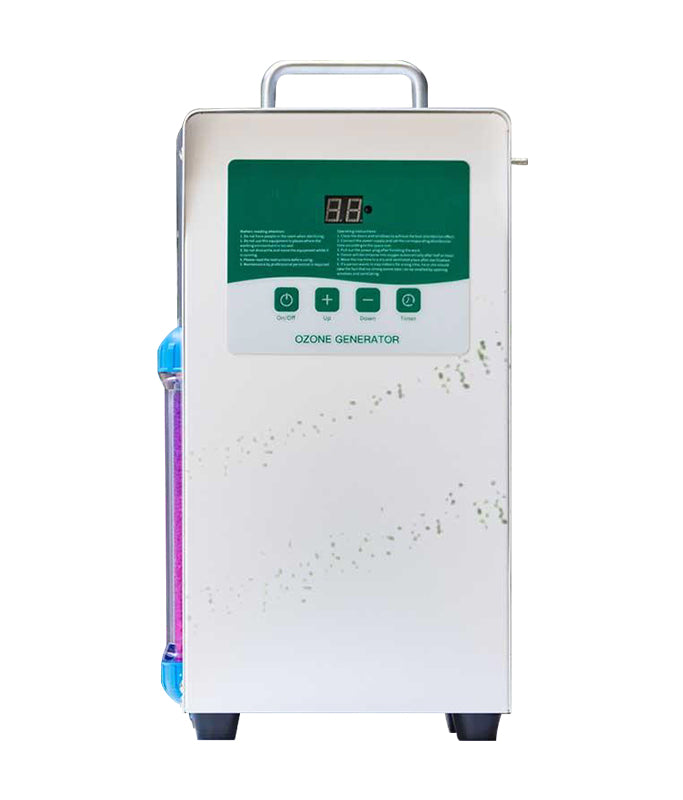

10G/Hr ozone generator

10G/Hr ozone generator

R 5,520.00
R 5,520.00
Sale Sold out
Shipping calculated at checkout.

QLA-10G

VERTICAL OZONE GENERATOR

Ozone is a powerful oxidant and bactericide. Lately, the ozone generator is widely used in air and water disinfection & sterilization in different fields such as fruit and vegetable fresh-keeping, drinking water purification, room air purifying, etc.

Features

  • Digital panel, with a touch button to control the timer
  • Anti-humidity device, install with the dryer bucket
  • QLOZONE new design double air-cooled ozone tube and power supply
  • Carbon steel painted chassis design, corrosion-resistant
  • Portable design, Chassis back cover with wall mounting holes

Technical Specifications

  • Power: 150W
  • Ozone Output: 10G/H
  • Outlet Flow: 32LPM
  • Suggested Water Flow: 3~5m3
  • Voltage: 220~240V/50Hz
  • Machine Size: 220x221x472mm
  • Weight:  5.3KG

Functions

  • Efficiently destroy a variety of bacteria and viruses, but without secondary pollution.
  • Effectively remove residual pesticides from vegetables and fruits.
  • Eliminate mold, smoke, and remove bad odor.
  • Improve the oxygen level for air and water.
  • Purifies the air and expedites human metabolism. Removes skin pore dirt, bacteria, and prevents freckles, acne, and pigmentation.

Operating Environment

  • Ambient Temperature: -10˚C ~37˚C
  • Ambient Humidity: ≤55%
  • There should be no flammable or explosive gas and conductive power dust in the room. It is not permittable to install the unit in a place where alkaline air is easy to leak or with a risk of an explosion that could occur.
  • The ground for equipment installation must be horizontal, and the equipment should be placed on the ground or steady supports
  • There must be a draft fan or air conditioner to keep the air dry and the operating environment in good ventilation.

Safety Notes

  • This series of products use a 220V/50Hz AC power source. If the voltage and frequency fluctuation range is heavy, this may cause damage and equipment failure.
  • The power cord plugs should keep in contact with the socket firmly. If not, this may result in abnormal electricity usage and even lead to electrocution.
  • Users should regularly inspect the power cord and avoid standing on or placing heavy objects on it.
  • Please don’t use the unit in an environment that contains explosive products.
  • In operation, the machine uses high voltage. Don’t open the back door or touch the inside of the unit when it's plugged in.
  • Avoid inside contact with water as this will damage the unit.

Applications
